Acoustic Focus Cabin for Open-Plan Offices

Soundproof Work Pod

Name: Soundproof Work Pod
Brand: HEMU Acoustics

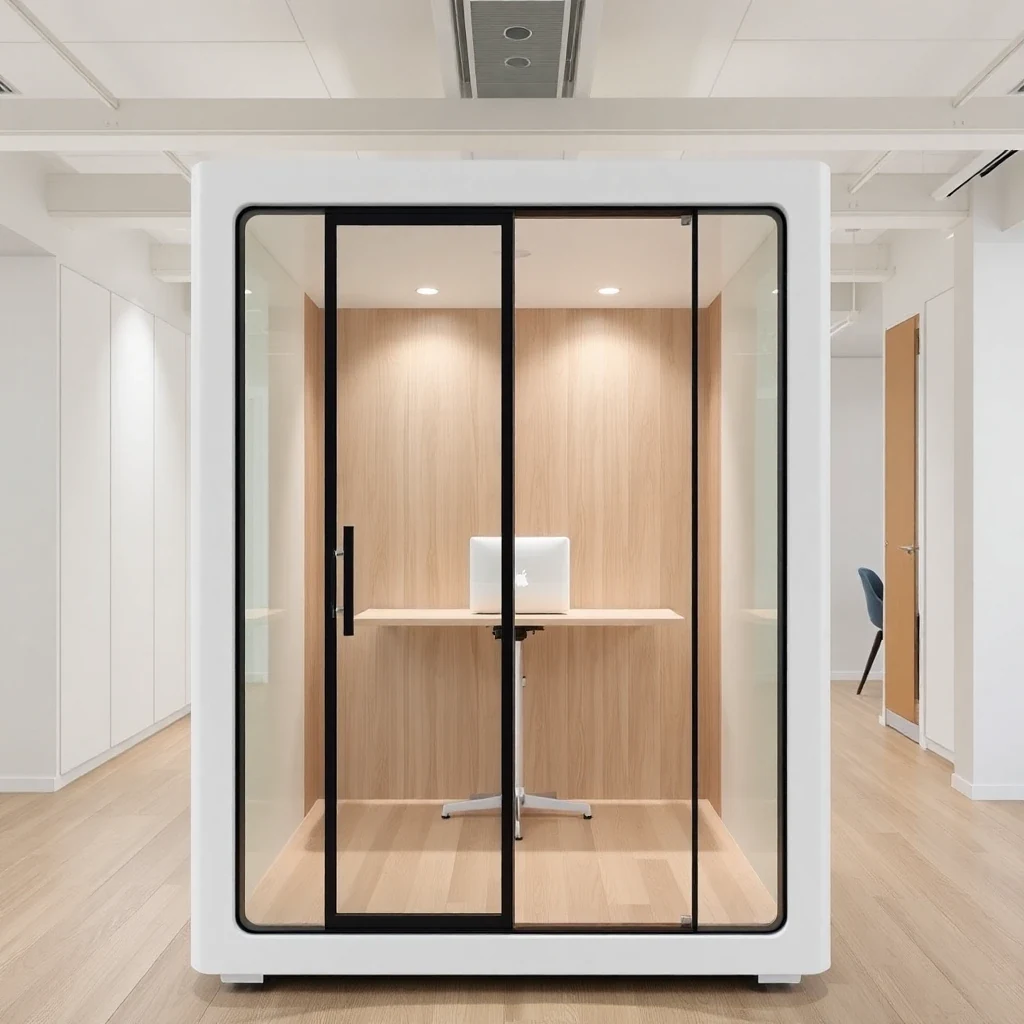

A high-performance soundproof work pod designed for sustained deep-focus work in busy open-plan environments. STC 40 composite walls reduce ambient office noise by up to 40 dB, enabling concentration equivalent to a private office without permanent construction.

プロジェクト相談技術詳細を見る

製品ギャラリー

5枚の写真 · クリックで拡大

技術仕様

Sound isolationSTC 40 / Rw 40 dB

Interior noise (65 dB(A) office)≈ 25 dB(A)

Capacity1 person

Desk height680–1180 mm (sit-stand)

換気25 l/s, ≤ 28 dB(A)

Lighting500 lux dimmable LED

Power2× outlets + USB-A/C hub

Wall construction120 mm composite + MLV

Front panelFrameless acoustic glass

Assembly time< 45 min (2 persons)

仕様は初期のプロジェクト確認用です。最終的なパラメータ、材料、証明書、受入基準は、署名済み契約書または承認済み技術提案書で確認してください。

用途

Open-plan office focus work
Video calls and virtual meetings
Confidential conversations
Deep concentration tasks
Hybrid work environments
Co-working space installations

概要

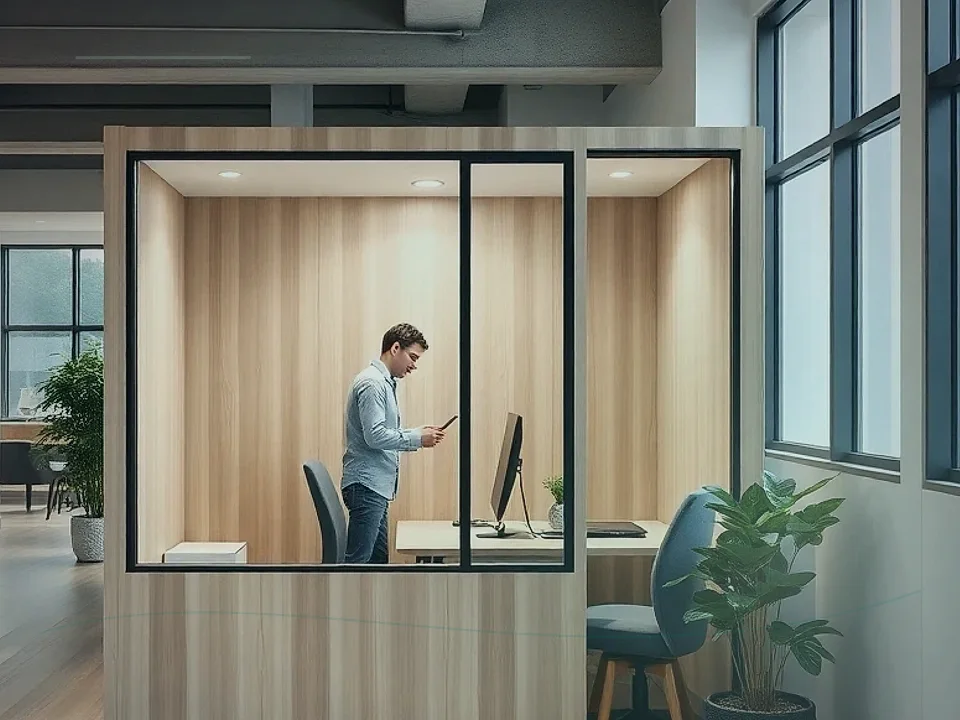

Open-plan offices increase collaboration but destroy individual focus. The HEMU Acoustics Soundproof Work Pod delivers STC 40 (Rw 40 dB) acoustic isolation — reducing a 65 dB(A) open-floor ambiance to a quiet 25 dB(A) interior — giving occupants the cognitive environment of a private office within a shared workspace.

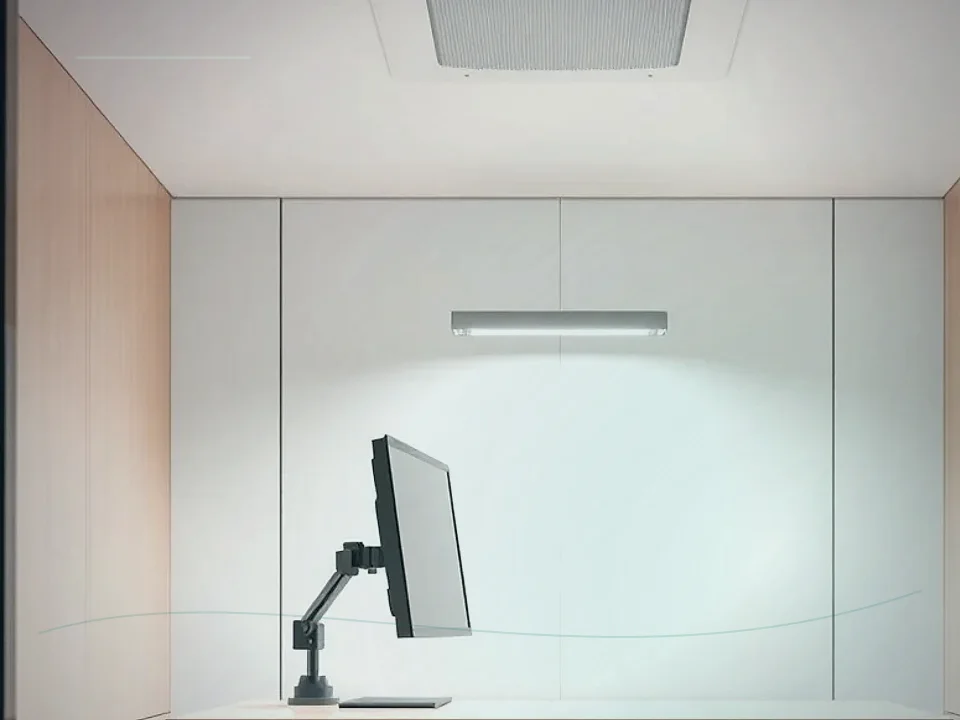

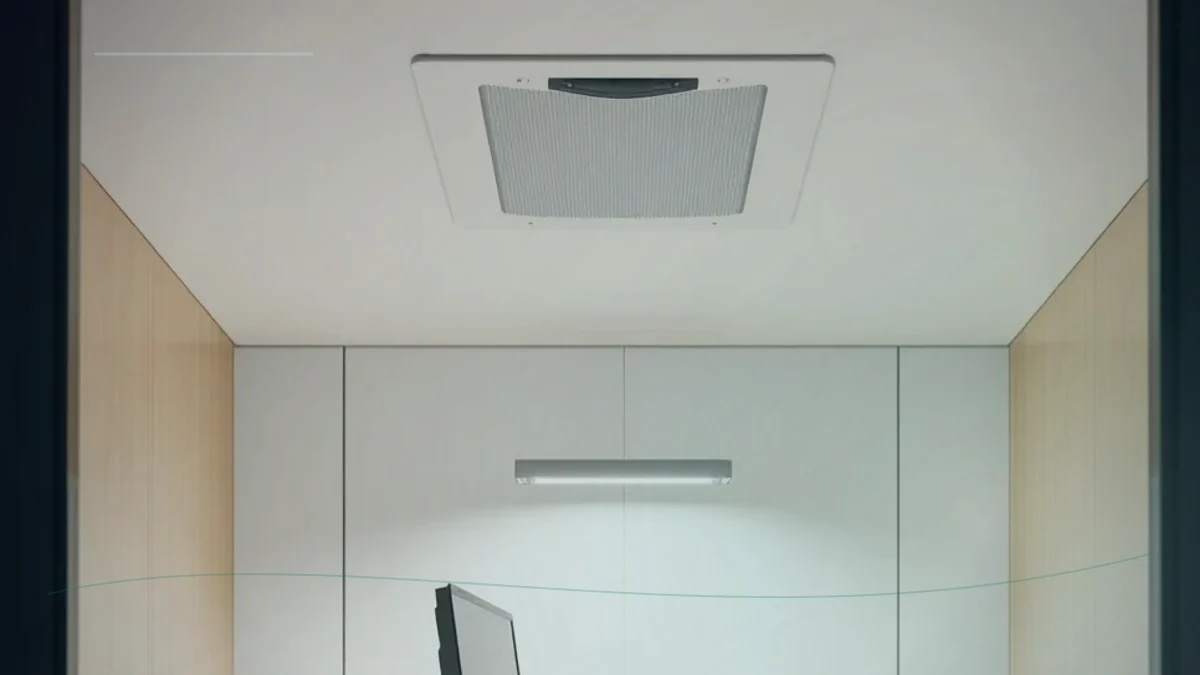

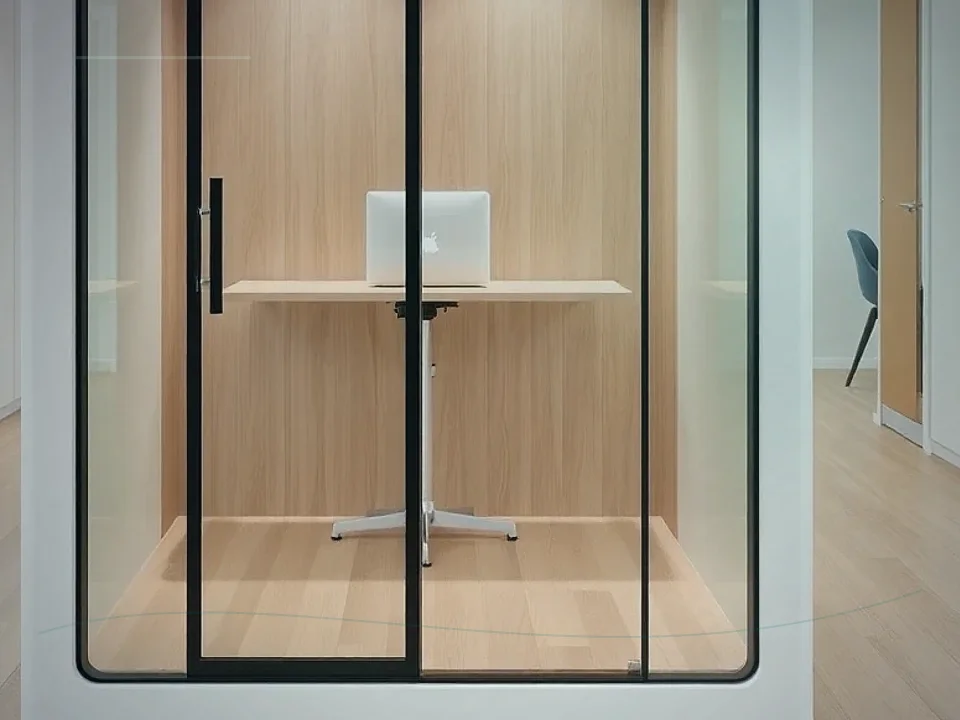

The interior is designed around a height-adjustable desk (680–1180 mm) accommodating both seated and standing postures, with integrated cable management tray, monitor mount arm bracket, and USB-A/C hub. Continuous low-noise mechanical ventilation (≤ 28 dB(A)) maintains 25 l/s fresh air per occupant for sessions of any length.

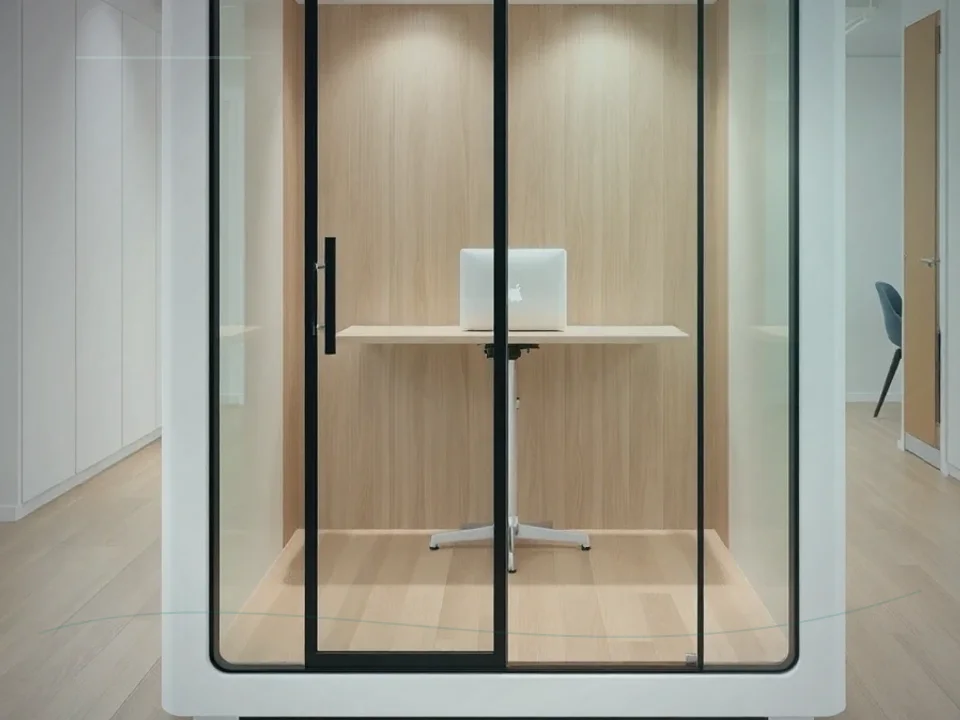

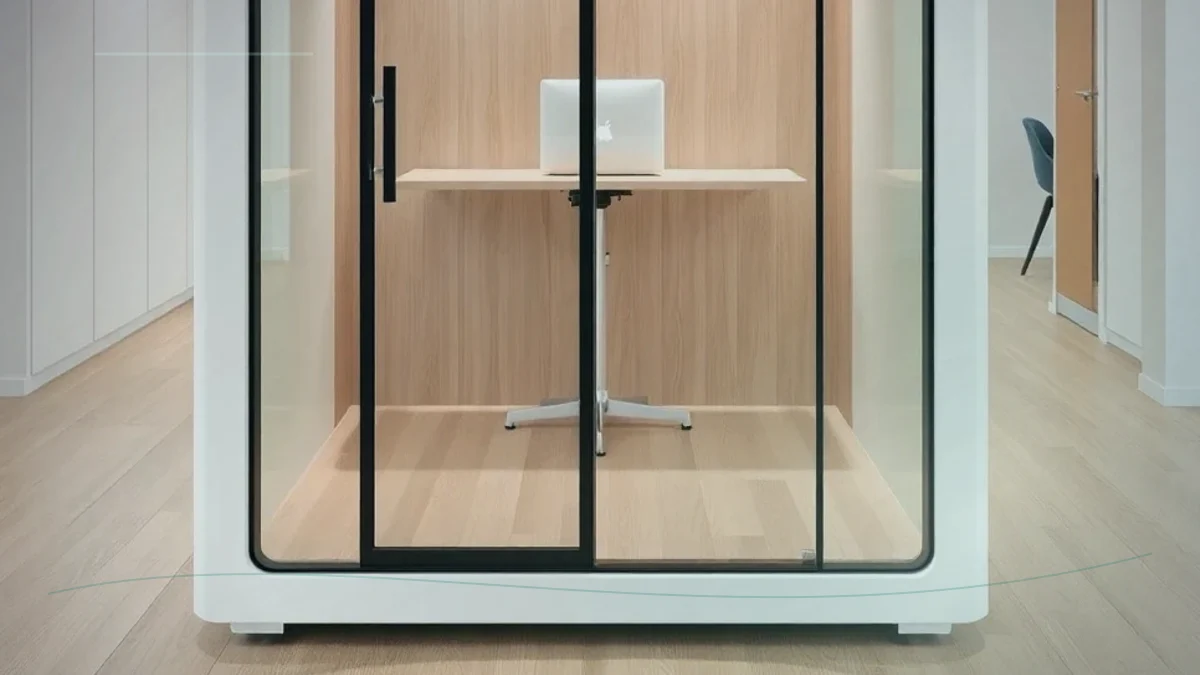

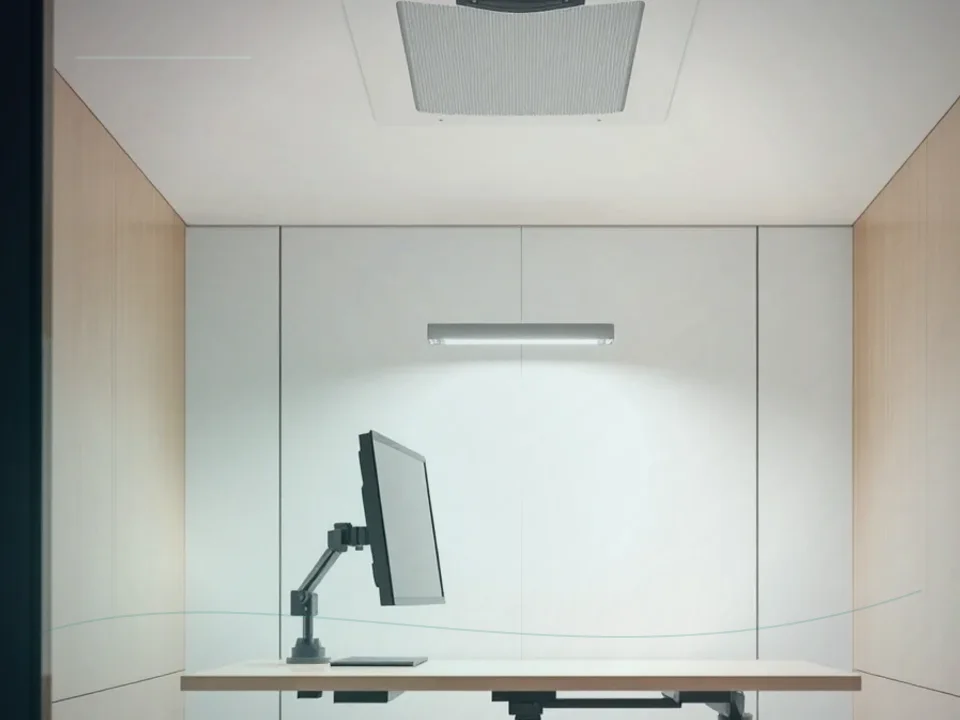

Glass panel front wall allows visual connection to the wider office while maintaining acoustic separation. Interior lighting runs at 500 lux via dimmable LED panels, matching recommended task-lighting standards. The pod connects directly to building power via a single 16 A circuit — no dedicated HVAC connection required.

Flat-pack composite panel construction ships in three cartons. Assembly requires two persons and approximately 45 minutes with supplied cam-lock fittings. Relocatable between floors without tools or specialist trades.
