Acoustic Drum Practice Enclosure

Soundproof Drum Booth

Name: Soundproof Drum Booth
Brand: HEMU Acoustics

A reinforced soundproof drum booth engineered specifically for acoustic drum kits. The combination of STC 50 composite wall panels, a decoupled floating floor, and continuous mechanical ventilation makes genuine acoustic drum practice possible in residential and commercial buildings without neighbour complaints.

프로젝트 검토 요청 기술 세부 정보 보기

제품 갤러리

사진 5장 · 클릭하여 확대

기술 사양

Sound isolationSTC 50 / Rw 50 dB

Wall systemDouble-leaf decoupled composite

Floating floor40 mm rubber isolator + 18 mm MDF

Interior footprint2.5 m × 2.5 m

Interior height2.3 m

Door width (clear)900 mm

환기≥ 30 l/s continuous

Impact noise reductionCompatible with residential criteria

Drum riser padsIncluded

Power4× outlets + USB charging

사양은 예비 프로젝트 검토용입니다. 최종 매개변수, 자재, 인증서 및 승인 기준은 서명된 계약서 또는 승인된 기술 제안서에서 확인해야 합니다.

적용 분야

Acoustic drum kit practice
Drum lesson and teaching studios
Rehearsal room drumming
Music school practice suites
Home studio drum recording
Residential building drum practice

개요

Acoustic drums generate peak SPL levels of 115–130 dB(A) — far exceeding the noise reduction achievable by standard office pods. The HEMU Acoustics Soundproof Drum Booth is engineered for this extreme load with a purpose-designed acoustic system.

The primary wall assembly uses a double-leaf composite panel (STC 50, Rw 50 dB) incorporating mass-loaded vinyl between two isolated panel leaves separated by a resilient mount air gap. This decoupled wall construction addresses both airborne sound transmission and structure-borne vibration simultaneously.

The floating floor system uses a 40 mm rubber isolator layer beneath an 18 mm MDF structural deck, breaking the direct impact transmission path to the building slab. Combined with drum riser isolation pads under the kit's bass drum and hi-hat stand, total impact noise at the building structure is reduced to levels compatible with residential floor criteria.

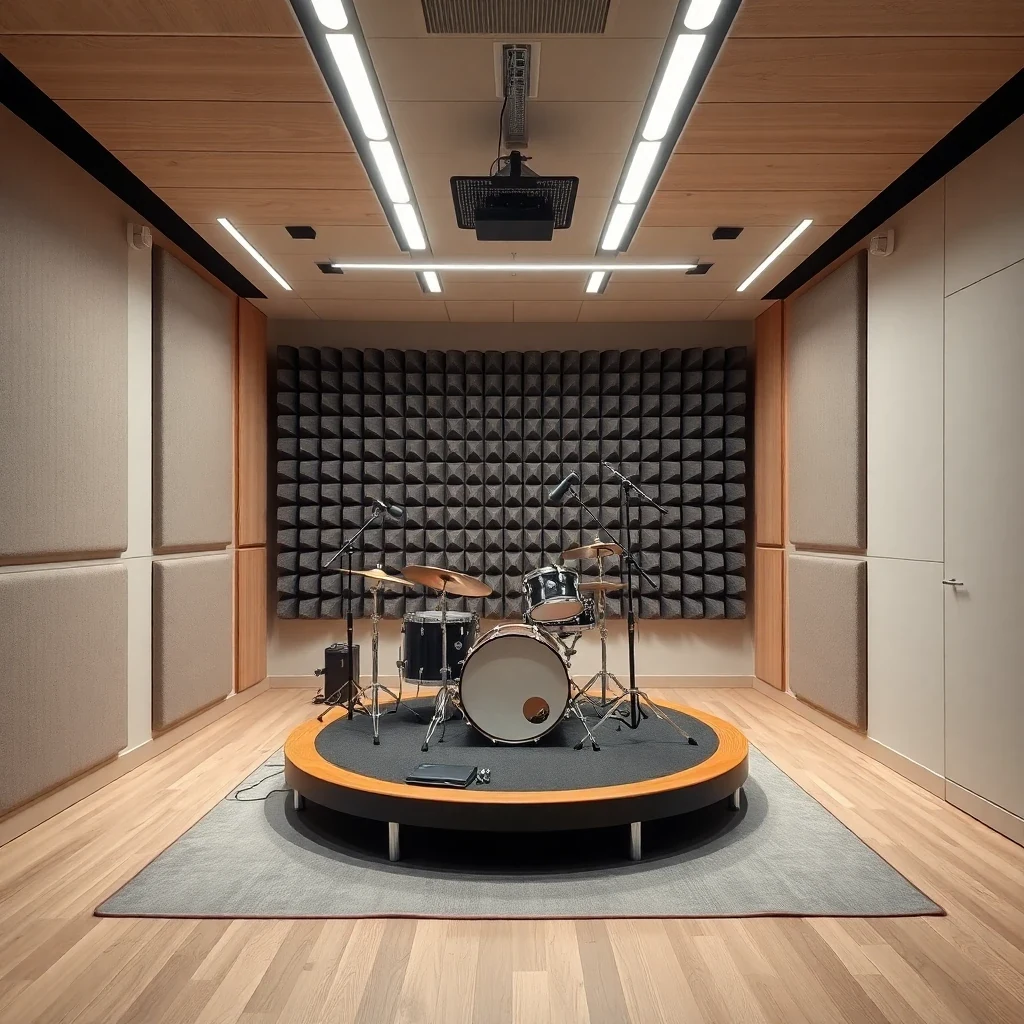

The interior dimensions (2.5 m × 2.5 m) accommodate a full five-piece drum kit with a drummer and, optionally, an observer/producer. Continuous mechanical ventilation maintains ≥ 30 l/s fresh air for extended practice — critical given the physical exertion of drumming and the heat generated in a sealed enclosure.

Heavy-duty double-door entry (900 mm clear width) with acoustic seals allows equipment and kit transport without disassembly.
