Professional Singing & Voice Recording Environment

Soundproof Vocal Booth

Name: Soundproof Vocal Booth
Brand: HEMU Acoustics

A dedicated soundproof vocal booth engineered for singers, voice actors, podcasters, and voiceover artists. STC 42 outer wall isolation combined with NRC 0.95 interior absorption delivers a clean, dry vocal signal without the need for a permanently constructed studio.

プロジェクト相談技術詳細を見る

製品ギャラリー

5枚の写真 · クリックで拡大

技術仕様

Sound isolationSTC 42 / Rw 42 dB

Interior absorptionNRC 0.95

Background noise floor< NC-20

Interior footprint1.2 m × 1.2 m

Interior height2.1 m

Cable pass-through50 mm port with seal

Window option600 × 400 mm acoustic glass

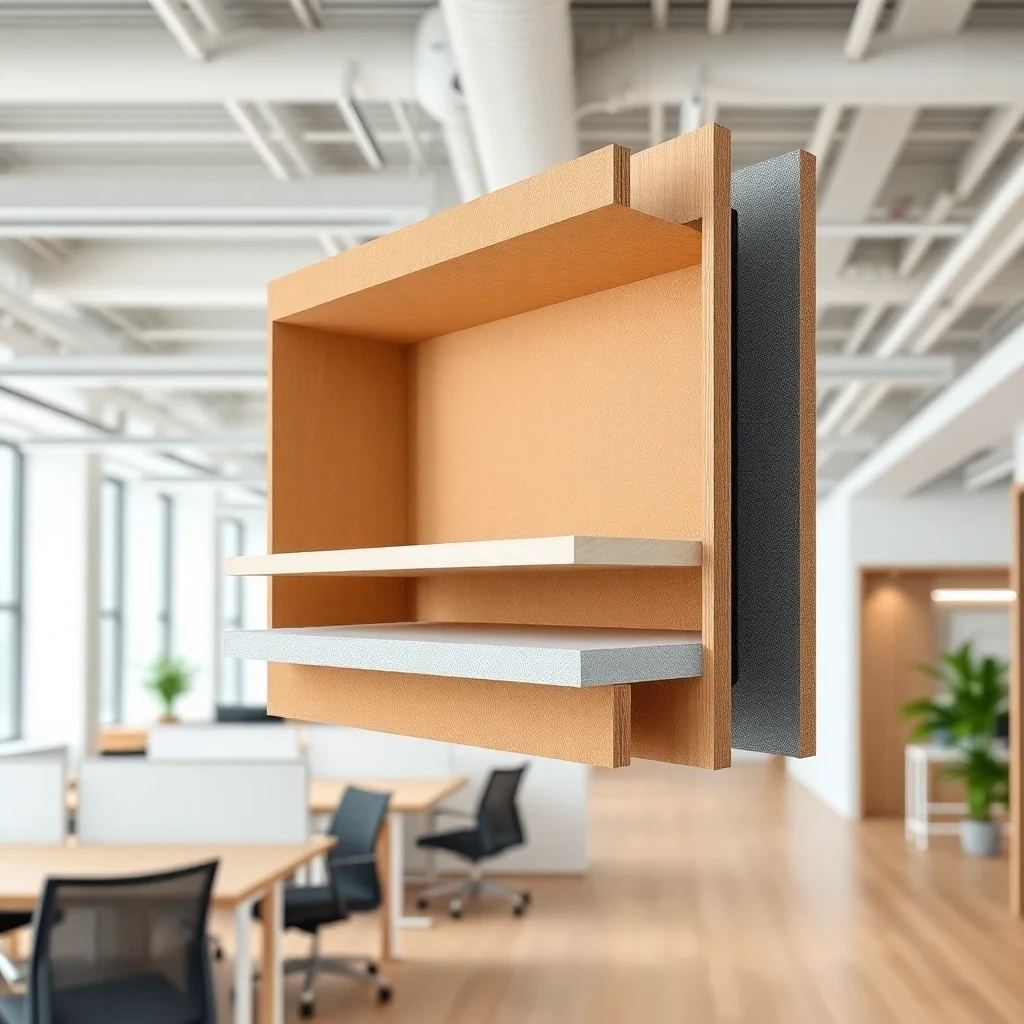

Wall construction120 mm composite + MLV + foam

Assembly time< 30 min (no tools)

Finish optionsFoam / perforated fabric

仕様は初期のプロジェクト確認用です。最終的なパラメータ、材料、証明書、受入基準は、署名済み契約書または承認済み技術提案書で確認してください。

用途

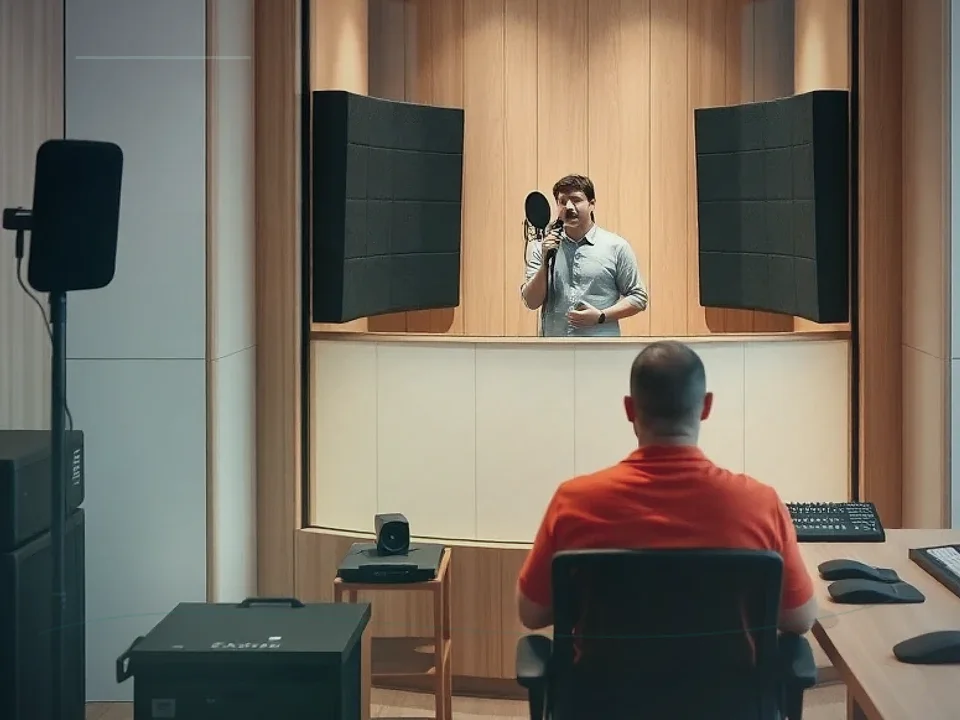

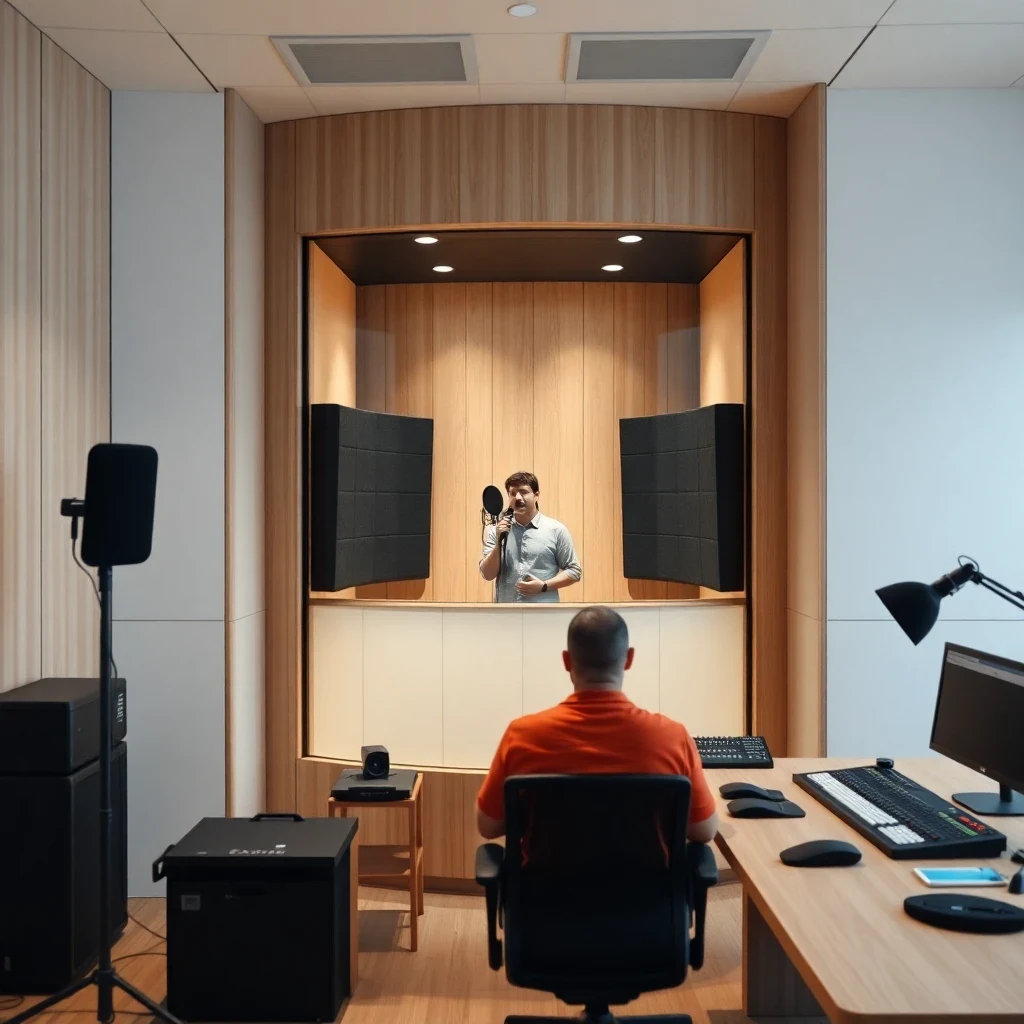

Lead vocal and backing vocal recording
Voiceover and audiobook narration
Podcast recording
ADR (automated dialogue replacement)
Home studio vocal tracking
Language and e-learning audio production

概要

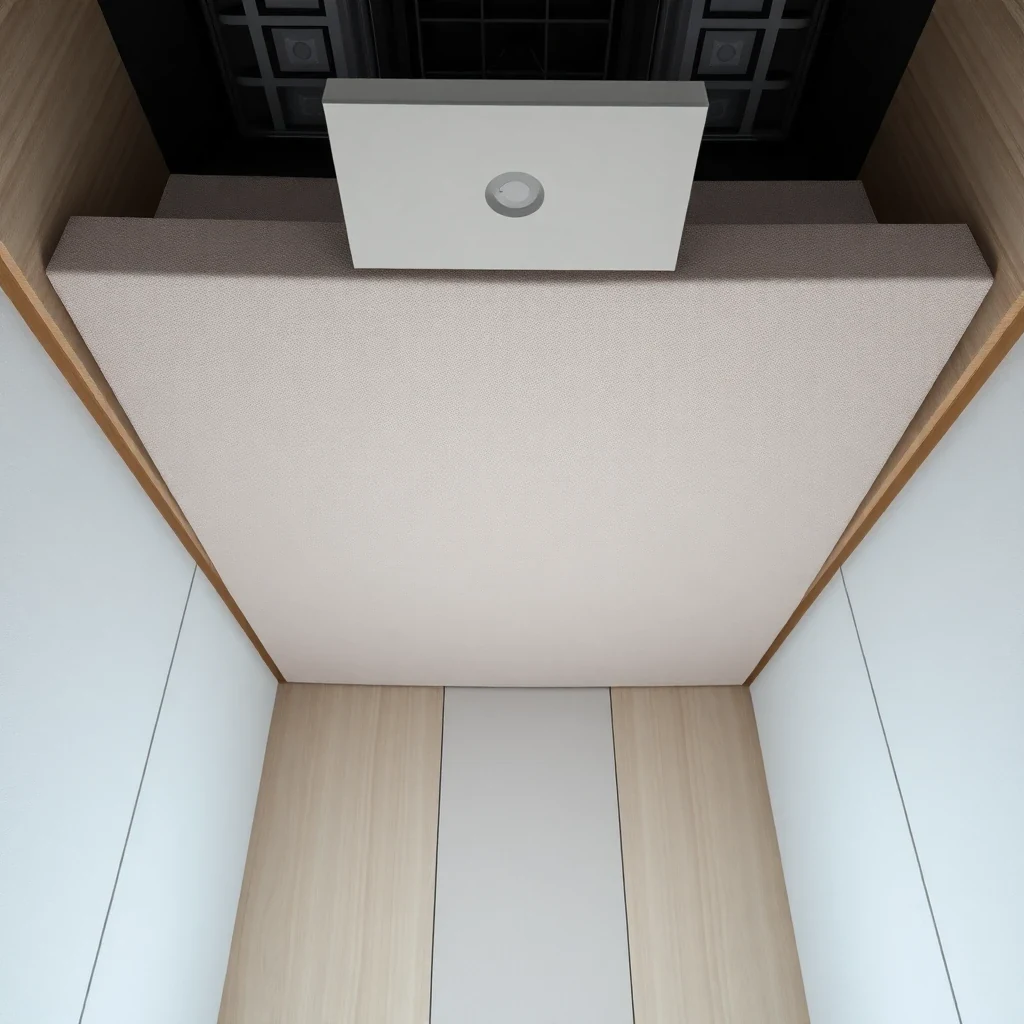

The HEMU Acoustics Soundproof Vocal Booth is purpose-built for vocal performance capture. The dual requirement for vocal booths — keeping external noise out while absorbing internal reflections — is addressed by our composite wall system (STC 42) and high-density melamine foam panel interior (NRC 0.95).

The result is a background noise floor below NC-20 and a near-anechoic interior frequency response from 200 Hz upward. A vocalist or voice actor using a large-diaphragm condenser microphone will achieve clean, room-correction-free recordings without post-production treatment.

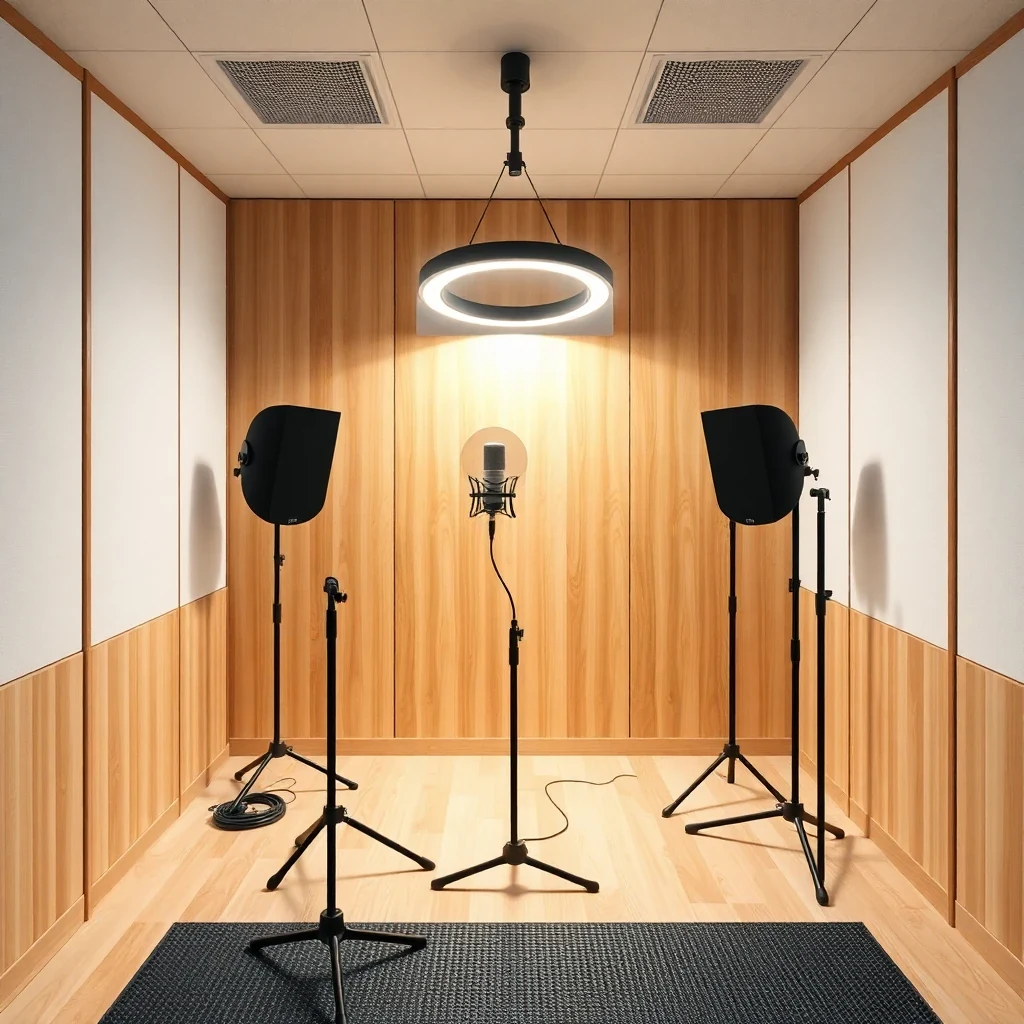

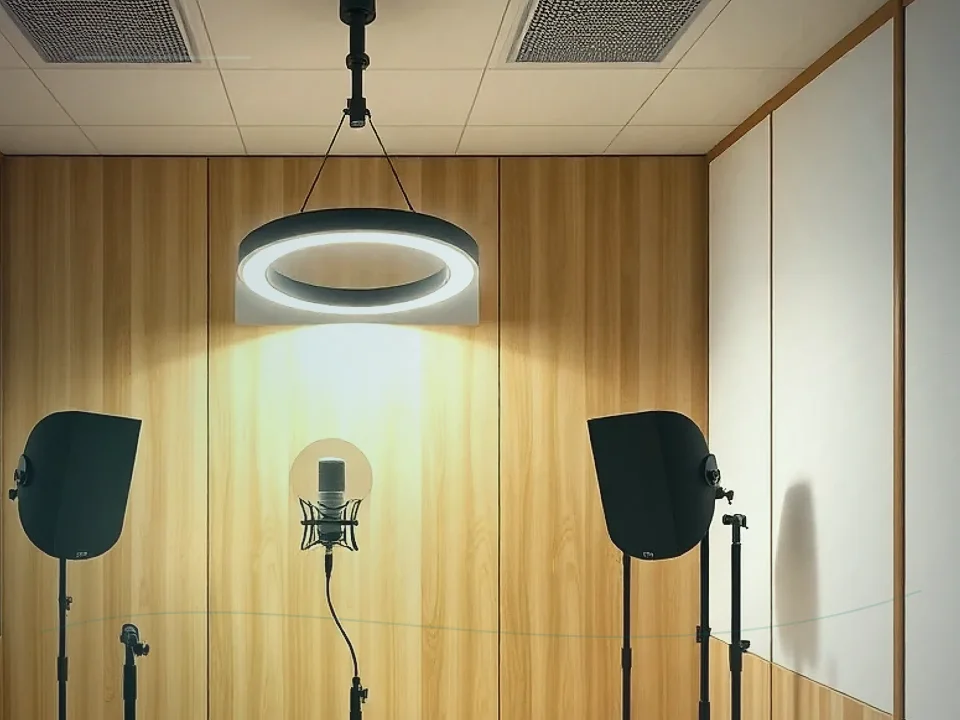

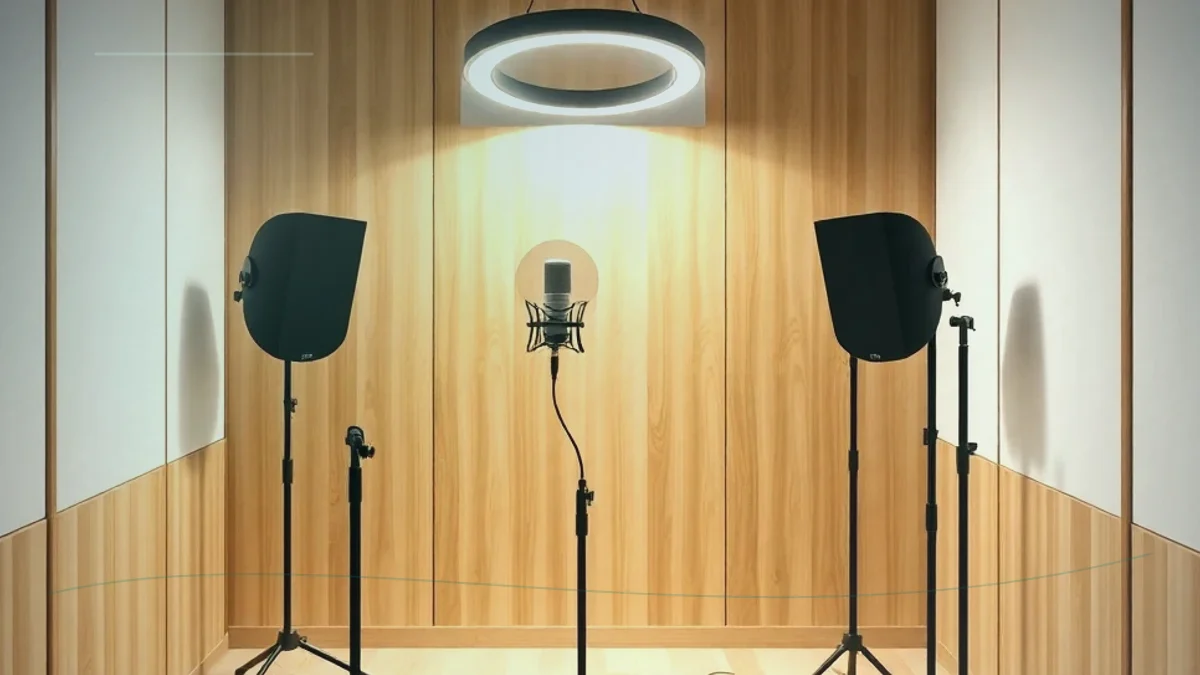

Internal dimensions of 1.2 m × 1.2 m provide comfortable standing room with a microphone stand and pop shield. A cable pass-through port (50 mm diameter, with rubber seal) routes XLR and power cables without air leaks. An optional internal acoustic window (600 × 400 mm) allows sight-line communication with a producer or recording engineer.

The flat-pack panel system assembles in 30 minutes with cam-lock connectors and can be fully disassembled and relocated. Available in standard acoustic foam grey interior or custom coloured perforated fabric lining for a professional studio aesthetic.
